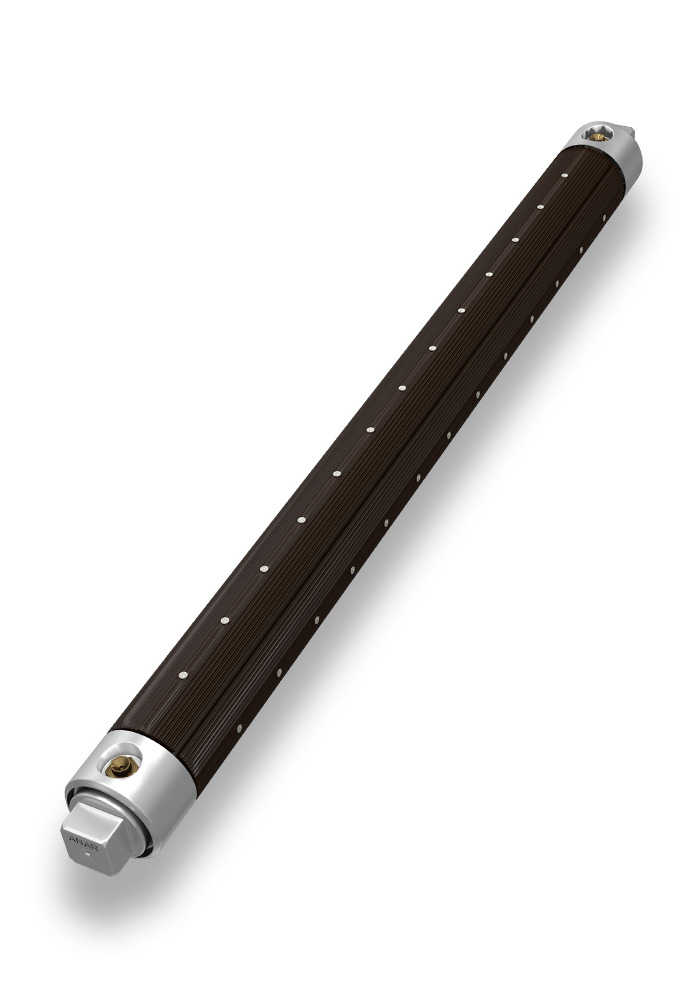

Leaf Type Air Shaft

Leaf Type Air Shaft

Our company is among the top manufacturers of high-quality Leaf Air Expansible Shaft. The width of the center product is extremely small. They are offered at various prices and ranges in the market. The pipes in these Machine are composed of steel, which makes them extremely tough. They are also available with core-less windings.


  • To protect against the risk of damage to the cores that are thin (100% support is available to the ID of the core.)
  • The narrow core width
  • Sometimes, the core-less winding is also possible.
  • There is a limit to accommodate speed and gauge variations


  • Lengths to be determined
  • It is suitable for use as a core ID. 3, 4, and 6 (metric size and sizes also made)

Leaf Type Air Shafts use in Industries.

The Leaf Type Air Shafts are used most suitably in the plants for mining, coal handling plants, underground coal mines, coal cut stations, coal washery plants, etc. These expandable air shafts are known for robust construction, highly durable finishing, etc. These ventilation ducts comprise metal leaves with knurling, opened baseline, elastic bladder, appropriate diaries, and non-bring valves back.

The leaf-type air shaft is generally used at the unwinding end of the wire to avoid damage to the cores. This gives good support to the core ID, which is beneficial in the case of thin cores. The presence of leaves at different heights also allows wide variation in the speed and gauge changes smoothly. However, this kind of design has one drawback, i.e., it does not give flexibility for winding the gauges below the core diameter, as it will land on the leaves at lower diameters. But past some radius, it works fine.

Quality Given by Us

Anar Rub Tech Pvt. Ltd. is the best Manufacturer of a Leaf-type Air Shaft. This shaft is the leading example of a fresh, new generation of up-and-coming products in the market. Leaf Type Air Shaft produces several types of shafts, depending upon the applications. These shafts are used. Anar Rub Tech Pvt. Ltd. has constantly been creating new designs and other related transformations to add to this large list of uses.

Why Anar Rub Tech Pvt. Ltd.

Every company highlights its key purpose to gain a profitable position here at Anar Rub Tech Pvt. We've been able to do the same with the Leaf-type air shaft, which is perfect for our clients.
